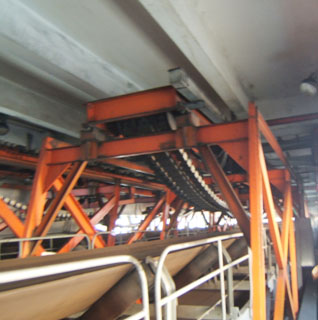

WGX type dynamic cyclic chain code check device is installed on the belt conveyor of the electronic belt scale for dynamic calibration of equipment, widely used in electric power, steel, coking, coal, chemical industry, etc.
The WGX type dynamic cycle chain code verification device can realize the dynamic automatic verification of the precision of electronic belt scale, which is usually used for various electronic belt scales with accuracy between 0.5 and 2.0.

Key technical indicators
Chain code unit weight (kg/m) : 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 200
Chain code precision: M11
System accuracy: plus or minus 0.1%
Check the belt scale capacity: 1-6000t/h
Suitable for conveyor belt width: 500-2200mm
Meter output interface: RS232/485,4-20ma, solid-state relay pulse output

The system characteristics
◆ The tracking chain code runs synchronously with the belt and simulates the conveying characteristics of materials approximately.
◆ The receiving, releasing or lifting of dynamic chain code is operated automatically by the electronic control system. According to the user's needs, the remote output contacts can be set up for remote verification in the program control room.
◆ During the calibration process, the calibration instrument can display the calibration value and transmit the data to the central control room so that the user can check the accuracy of current electronic belt scale measurement.
◆ The inspection process is convenient, fast, highly automated, time-saving, labor-saving, accurate and reliable.
